Pretrained Classification using MMoCHi

Author: Daniel Caron

In this notebook, we walk through applying a pretrained MMoCHi classifier to an unannotated dataset. This is especially useful for evaluating performance on completely held-out data. First, we will load in a new dataset and perform similar preprocessing and landmark registration. Then, we will load in a pretrained MMoCHi classifier, then apply it to predict cell type identities in this new dataset.

      A note before we begin: While it is technically possible to apply pretrained MMoCHi classifiers to new datasets or batches without retraining, a MMoCHi classifier is ideally trained (or retrained) using the entire dataset. This helps to maximize its performance classifying rare cell types. Moreover, new datasets may contain unique biological conditions, sequencing chemistries, or alignment and preprocessing steps, which may affect information transfer. If you do need to apply a pretrained MMoCHi classifier to new data, try to ensure the training dataset was as representative as possible of the new dataset.

Import packages

import anndata
import scanpy as sc
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
plt.rcParams['figure.dpi'] = 150
plt.rcParams['figure.facecolor'] = 'white'

import mmochi as mmc
import os

#global defaults
mmc.DATA_KEY = 'landmark_protein'
mmc.BATCH_KEY = 'batch'

Downloading and preprocessing the data

Run Integrated Classification First!

This tutorial builds off of the Integrated Classification tutorial, and uses the MMoCHi classifier trained and saved during that tutorial.

       We have previously classified two datasets from 10X Genomics. Here, we will apply that pretrained classifier to another 10X dataset (pbmc_1k_protein_v3). We will first apply the same preprocessing and normalization applied to the training dataset:

batch_name = 'pbmc_1k_protein_v3'
file = 'data/pbmc_1k_protein_v3.h5'
url = 'http://cf.10xgenomics.com/samples/cell-exp/3.0.0/pbmc_1k_protein_v3/pbmc_1k_protein_v3_filtered_feature_bc_matrix.h5'

adatas = mmc.utils.preprocess_adatas(file, backup_urls = url, log_CP_ADT=1e3, log_CP_GEX=1e4)
held_out_batch = adatas[0]
held_out_batch.obs['batch'] = batch_name

Normalizing ADTs - Landmark Registration

      Similar to our other batches, this CITE-Seq data will require careful integration. Because we fixed our peak alignment previously to specific arbitrary values (1 and 3), we can easily reproduce the same integration with this new batch without needing to load in the other dataset.

held_out_batch = mmc.landmark_register_adts(held_out_batch, single_peaks=['CD25'])

Running with batch batch

Although we will skip this step here, one should carefully evaluate landmark registration across all new batches and ADTs to ensure landmarks were properly detected. For more details, see the Landmark Registration tutorial.

Exploring the data

      Prior to any form of cell type classification, it’s important to get familiar with your dataset! Here, we’re going to focus on identifying whether there are any novel cell types that were not included when training our previous classifier. These novel cell types would need to be annotated by clustering and removed prior to classification.

Since these processes are stochastic, we have provided the UMAP coordinates and Leiden clusters as .csv files to load in:

if os.path.isfile('data/Integrated_Classification_X_umap.txt') and os.path.isfile('data/Integrated_Classification_leiden.csv'):
    held_out_batch.obsm['X_umap'] = np.loadtxt('data/Holdout_X_umap.txt')
    held_out_batch.obs['leiden'] = pd.read_csv('data/Holdout_leiden.csv').set_index('Unnamed: 0')['leiden'].astype(str)
else:
    print('No pre made files found, generating new leiden clusers')
    sc.pp.highly_variable_genes(held_out_batch)
    sc.pp.pca(held_out_batch)
    sc.pp.neighbors(held_out_batch)
    sc.tl.umap(held_out_batch)
    sc.tl.leiden(held_out_batch)
    np.savetxt('data/Holdout_X_umap.txt',held_out_batch.obsm['X_umap'])
    held_out_batch.obs['leiden'].to_csv('data/Holdout_leiden.csv')

Unsupervised analysis tip — Multimodal

      Here, for simplicity, we are only performing UMAP analysis and clustering on the gene expression (GEX). As brefore, you should repeat this with ADT data, or using multimodal techniques, such as totalVI.

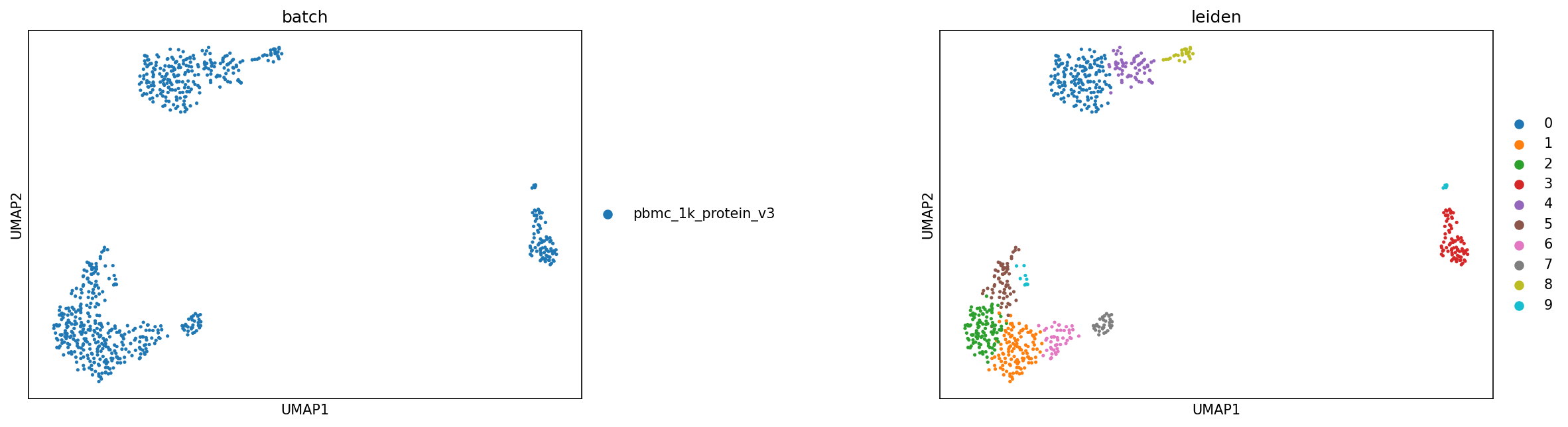

Let’s first plot the batches and Leiden clusters to evaluate clustering:

sc.pl.umap(held_out_batch, color=['batch','leiden'], s=25, sort_order=False, wspace =.5)

... storing 'batch' as categorical
... storing 'leiden' as categorical
... storing 'feature_types' as categorical
... storing 'genome' as categorical
... storing 'pattern' as categorical
... storing 'read' as categorical
... storing 'sequence' as categorical

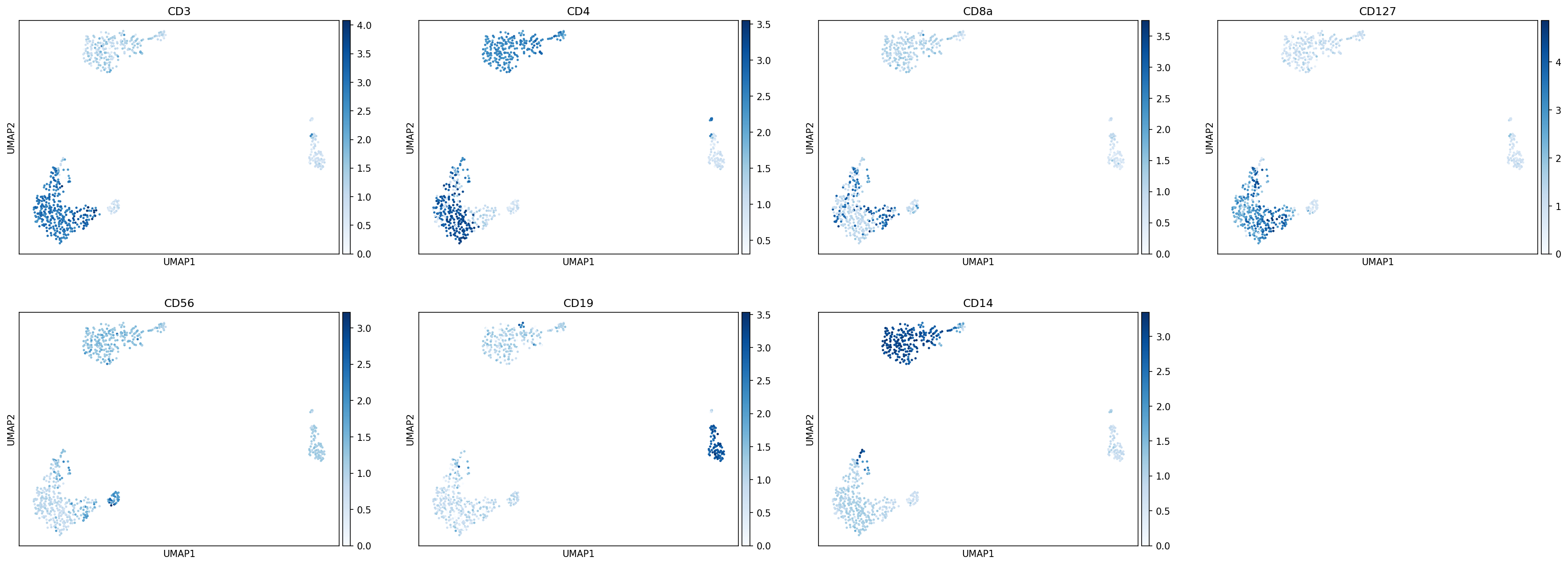

      Let’s take a look at some marker genes and proteins for various immune cell subsets. Performing this cursory unsupervised analysis is critical, as it will help you identify any quality control issues, unexpected cell types, or novel cell states. This can also be a helpful step to validate that the markers you plan to use for cell type identification are well-expressed in the data set.

sc.pl.umap(held_out_batch, color=['CD3E','CD4','CD8A','IL7R','NKG7','CD19','JCHAIN','CD14'],
           s=25, sort_order=False, cmap='Reds')

protein_adata = anndata.AnnData(held_out_batch.obsm['landmark_protein'], held_out_batch.obs.copy())
protein_adata.obsm['X_umap'] = held_out_batch.obsm['X_umap'].copy()
sc.pl.umap(protein_adata, color=['CD3','CD4','CD8a','CD127','CD56','CD19','CD14'],
           s=25, sort_order=False, cmap='Blues')

There do not appear to be any clusters here corresponding to unexpected cell types. We can proceed with classification.

held_out_batch.obs['T_B doublets'] = 'False'

Load and apply pretrained MMoCHi classifier

      Note: Running the classifier on another donor requires the features line up exactly. This generally means the feature matrices must be created using the same or very similar alignment conditions and preprocessing. This is all true for our held-out dataset. Let’s load in the hierarchy we saved earlier:

if os.path.isfile('data/IntegratedClassifier.hierarchy'):
    hierarchy = mmc.Hierarchy(load='data/IntegratedClassifier')
else:
    print('No file found, run integrated clasification tutorial to generate this trained hierarchy')

Loading classifier from data/IntegratedClassifier...

Loaded data/IntegratedClassifier.hierarchy

      Predicting on the new data is as simple as running the classify function with the pretrained hierarchy using retrain=False. We can then collect the terminal names in the .obs for our final classification. Note that this runs much quicker than training on a large dataset.

held_out_batch,_ = mmc.classify(held_out_batch, hierarchy, 'lin', retrain=False)
held_out_batch = mmc.terminal_names(held_out_batch)

Setting up...

No provided modality name, defaulting to gex for all of .X

Using .X and landmark_protein

No min_cells feature reduction...
Resorting to enforce sorted order of features by name

Set up complete.
Using 33555 features

Running with batch batch
Using weights of: [1.0] for random forest n_estimators

Data subsetted on All in All
Running high-confidence populations for Removal...

Running high-confidence thresholds in pbmc_1k_protein_v3

Performing cutoff for Removal...
Merging data into adata.obsm['lin']
Predicted:
Removal_class
To classify    713
Name: count, dtype: int64
Data subsetted on To classify in Removal
Predicting for Broad Lineages...

Limiting features using listlike, make sure you include modality information...
[Parallel(n_jobs=20)]: Using backend ThreadingBackend with 20 concurrent workers.
[Parallel(n_jobs=20)]: Done  10 tasks      | elapsed:    0.3s

Merging data into adata.obsm['lin']
Predicted:
Broad Lineages_class
Lymphocyte    445
Myelocyte     268
Name: count, dtype: int64

[Parallel(n_jobs=20)]: Done 101 out of 101 | elapsed:    0.7s finished

Data subsetted on Lymphocyte in Broad Lineages
Predicting for Lymphoid...

Limiting features using listlike, make sure you include modality information...
[Parallel(n_jobs=20)]: Using backend ThreadingBackend with 20 concurrent workers.
[Parallel(n_jobs=20)]: Done  10 tasks      | elapsed:    0.2s

Merging data into adata.obsm['lin']
Predicted:
Lymphoid_class
T cell    331
B cell     80
NK_ILC     34
Name: count, dtype: int64

[Parallel(n_jobs=20)]: Done 101 out of 101 | elapsed:    0.5s finished

Data subsetted on NK_ILC in Lymphoid
Predicting for NK_ILC Subsets...

Limiting features using listlike, make sure you include modality information...
[Parallel(n_jobs=20)]: Using backend ThreadingBackend with 20 concurrent workers.
[Parallel(n_jobs=20)]: Done  10 tasks      | elapsed:    0.1s

Merging data into adata.obsm['lin']
Predicted:
NK_ILC Subsets_class
NK     19
ILC    15
Name: count, dtype: int64

[Parallel(n_jobs=20)]: Done 101 out of 101 | elapsed:    0.3s finished

Data subsetted on T cell in Lymphoid
Predicting for CD4_CD8...

Limiting features using listlike, make sure you include modality information...
[Parallel(n_jobs=20)]: Using backend ThreadingBackend with 20 concurrent workers.
[Parallel(n_jobs=20)]: Done  10 tasks      | elapsed:    0.1s

Merging data into adata.obsm['lin']
Predicted:
CD4_CD8_class
CD4 T cell    265
CD8 T cell     66
Name: count, dtype: int64

[Parallel(n_jobs=20)]: Done 101 out of 101 | elapsed:    0.4s finished
Converting columns in adata.obsm["lin"] to savable dtypes...
Converting columns in adata.obsm["lin"] to savable dtypes...
/home/ubuntu/_Codebases/MMoCHi/mmochi/classifier.py:1287: FutureWarning: Downcasting object dtype arrays on .fillna, .ffill, .bfill is deprecated and will change in a future version. Call result.infer_objects(copy=False) instead. To opt-in to the future behavior, set `pd.set_option('future.no_silent_downcasting', True)`
  conf_matrix = conf_matrix.fillna(1.0)

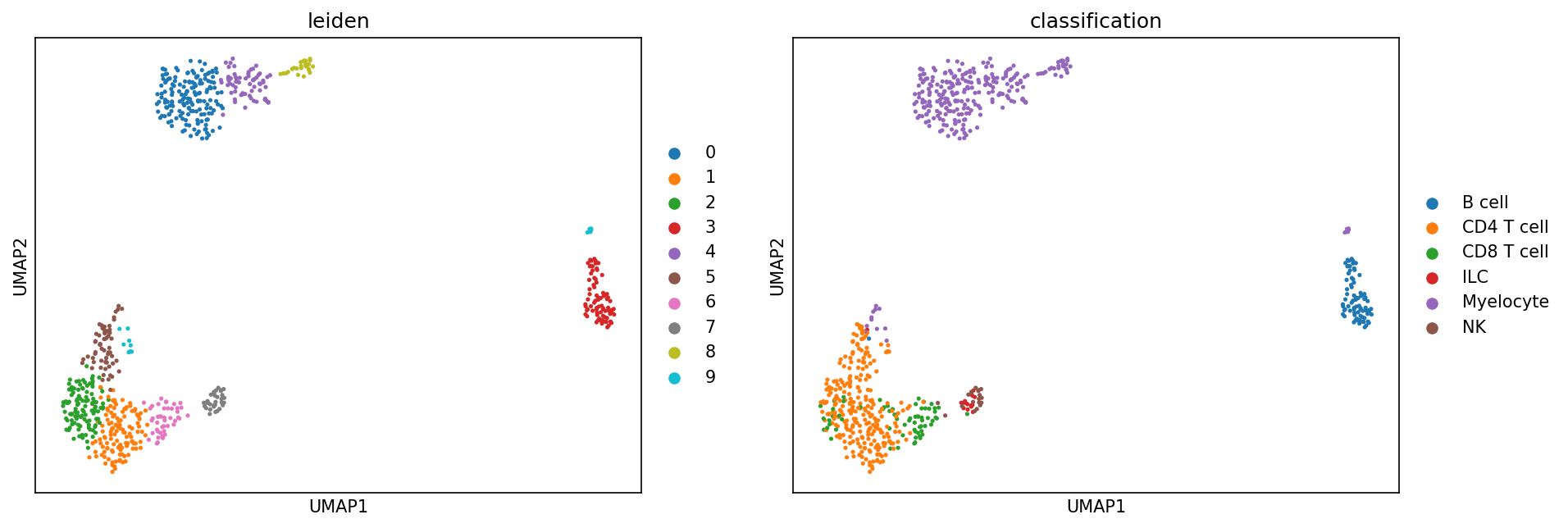

Lastly, to verify the classifier performed well, we can evaluate expression of known marker genes and proteins for these populations. First, let’s look at it on a UMAP

sc.pl.umap(held_out_batch, color=['leiden','classification'], ncols=5, s=25, sort_order=False)

... storing 'T_B doublets' as categorical

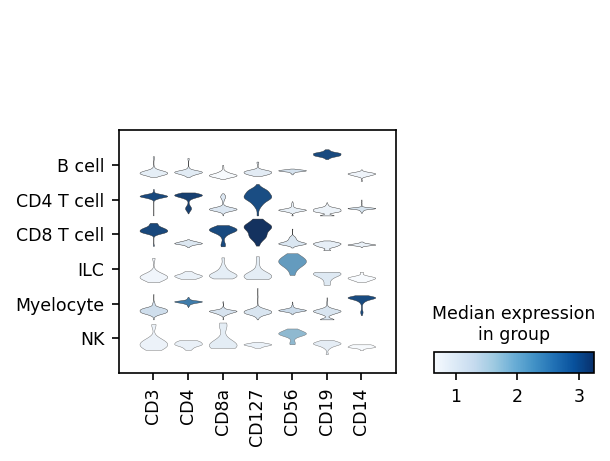

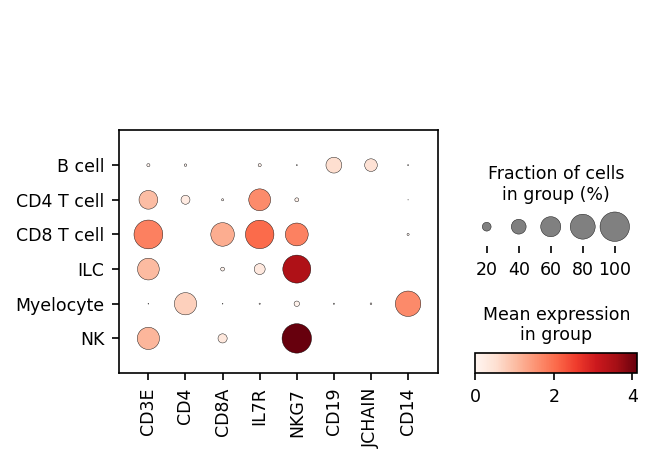

We can also look at marker expression using dotplots for GEX and violin plots for ADTs:

protein_adata.obs['classification'] = held_out_batch.obs.classification
sc.pl.dotplot(held_out_batch, ['CD3E','CD4','CD8A','IL7R','NKG7','CD19','JCHAIN','CD14'], 'classification')
sc.pl.stacked_violin(protein_adata, ['CD3','CD4','CD8a','CD127','CD56','CD19','CD14'], 'classification')

Great!

MMoCHi appears to have performed well annotating this dataset!
